Thunderbolt 5 Dual HDMI Dock
Designed by OWC
New
Specifications
Features and benefits
- Dual HDMI 2.1 displays without adapters
- Connect two 8K or 4K displays directly via native HDMI ports, each running on an independent controller for uncompromised bandwidth.
- 140W Power Delivery for demanding laptops
- Keeps power-hungry MacBook Pro and Windows workstations fully charged at peak loads through the primary Thunderbolt 5 cable.
- 80Gbps downstream Thunderbolt 5 speed
- Daisy-chain external NVMe SSDs, RAID storage, or connect a third display up to 6K @ 60Hz without shared-bandwidth bottlenecks.
- 2.5Gb Ethernet and dual UHS-II card readers
- Eliminates Wi-Fi dropouts for NAS and file transfers, alongside front-facing SD and microSD slots for instant camera card offload.
- Versatile horizontal or vertical desk layout
- Lay the solid aluminium chassis flat beside your keyboard or stand it upright to save desk space.
Specifications
| Host connection | Thunderbolt 5 (USB-C) with up to 140W Power Delivery |
|---|---|
| Downstream Thunderbolt | 1× Thunderbolt 5 (USB-C) up to 80Gbps bidirectional / 120Gbps video (30W PD) |
| Video outputs | 2× HDMI 2.1 |
| Display support (TB5 host) | Up to dual 8K @ 60Hz, dual 4K @ 240Hz, or triple 4K @ 144Hz / 6K @ 60Hz |
| Display support (TB4 host) | Up to single 8K @ 60Hz / 4K @ 120Hz, or dual 4K @ 60Hz (triple not supported) |
| Front USB ports | 2× USB-C 10Gbps (one 30W PD, one 15W), 1× USB-A 10Gbps |
| Rear USB ports | 3× USB-C 5Gbps (7.5W), 2× USB-A 5Gbps (7.5W) |
| Ethernet | 1× 2.5GbE RJ45 (2.5Gbps, 1Gbps, 100Mbps) |
| Memory card slots | 1× SDXC (UHS-II up to 312 MB/s), 1× microSDXC (UHS-II up to 312 MB/s) |
| Audio | 1× 3.5mm stereo headphone/microphone combo jack |
| Thunderbolt chipset | Intel Barlow Ridge (JHL-9480) |
| Ethernet chipset | Realtek RTL-8156B (2.5GbE) |
| UASP support | Yes |
| Power button | Yes (rear on/off power button) |
| Cable stabilizer support | Yes (supports OWC ClingOn) |
| Power supply | External universal auto-switching 180W (+20V DC) |
| Dimensions | 16.5 × 7.5 × 5.6 cm (6.5 × 3.0 × 2.2 in) |
| Weight | 1.0 kg (2.29 lbs) |
| Security | Kensington security slot |
Materials
| Chassis | Aluminium in Space Grey |
|---|---|
| End covers | Polycarbonate |
What's in the box
- OWC Thunderbolt 5 Dual HDMI Dock in Space Grey
- 1.0m OWC Thunderbolt 5 Cable
- 180W External Power Supply and Power Cable
- Quick Start Guide
Compatibility
Fits: Thunderbolt 5, Thunderbolt 4, USB4, USB-C, and Thunderbolt 3 (Mac only) computers running macOS 14 Sonoma, macOS 15 Sequoia, macOS 26 Tahoe, Windows 11, ChromeOS, or iPadOS.
Doesn't fit: Thunderbolt 3 Windows PCs (Thunderbolt 3 is Mac only).
Works with: HDMI monitors, 8K, 6K, 5K, and 4K displays, Apple USB SuperDrive (with OWC driver), Thunderbolt and USB-C drives, OWC ClingOn cable stabilizers, and OWC Innergize software for Atlas memory cards.
Is it right for you?
Yes, if you run dual HDMI monitors and want full 140W laptop charging, 2.5Gb Ethernet, and high-speed storage without hunting for display adapters.
Probably not, if you only need a portable bus-powered travel hub or your workstation relies exclusively on native DisplayPort connectors.
Using it
Connection. Connect the included 180W power supply to the DC IN port and wall outlet, then attach the 1.0-metre Thunderbolt 5 cable between the dock and your laptop host port.
Display setup. Connect your monitors directly to HDMI 1 and HDMI 2 using standard HDMI cables. For a third display on a Thunderbolt 5 host, connect a screen to the downstream Thunderbolt 5 port.
Apple SuperDrive support. Install the free OWC Dock Ejector app to enable Apple USB SuperDrive support, full iPad charging, and single-click safe drive unmounting on macOS.
Warranty
OWC gives a 2-year limited warranty from the date of purchase against defects in materials and workmanship. Normal wear and tear, cosmetic damage (including scratches and cracks), accidental damage and misuse are not covered.
Questions
- Can I connect two HDMI displays without any adapters?
- Yes. The dock features two native HDMI 2.1 ports built in, so standard HDMI cables connect directly to your monitors.
- Can I drive three monitors simultaneously?
- Yes. On a Thunderbolt 5 host, you can run two displays over the HDMI 2.1 ports and a third display through the downstream Thunderbolt 5 port at up to 4K @ 144Hz or 6K @ 60Hz. Thunderbolt 4 hosts support up to two displays.
- Does it charge a 16-inch MacBook Pro at full speed?
- Yes. The host port delivers up to 140W of Power Delivery, supplying maximum charging speed even under continuous high-load creative workflows.
- Can I turn the dock off without unplugging the power supply?
- Yes. The dock includes a physical on/off power button on the rear panel.
- Does it work with an Apple USB SuperDrive?
- Yes. Installing the free OWC Dock Ejector software includes the optional macOS driver required to power and run Apple SuperDrives through the dock.
- Can the dock stand vertically on my desk?

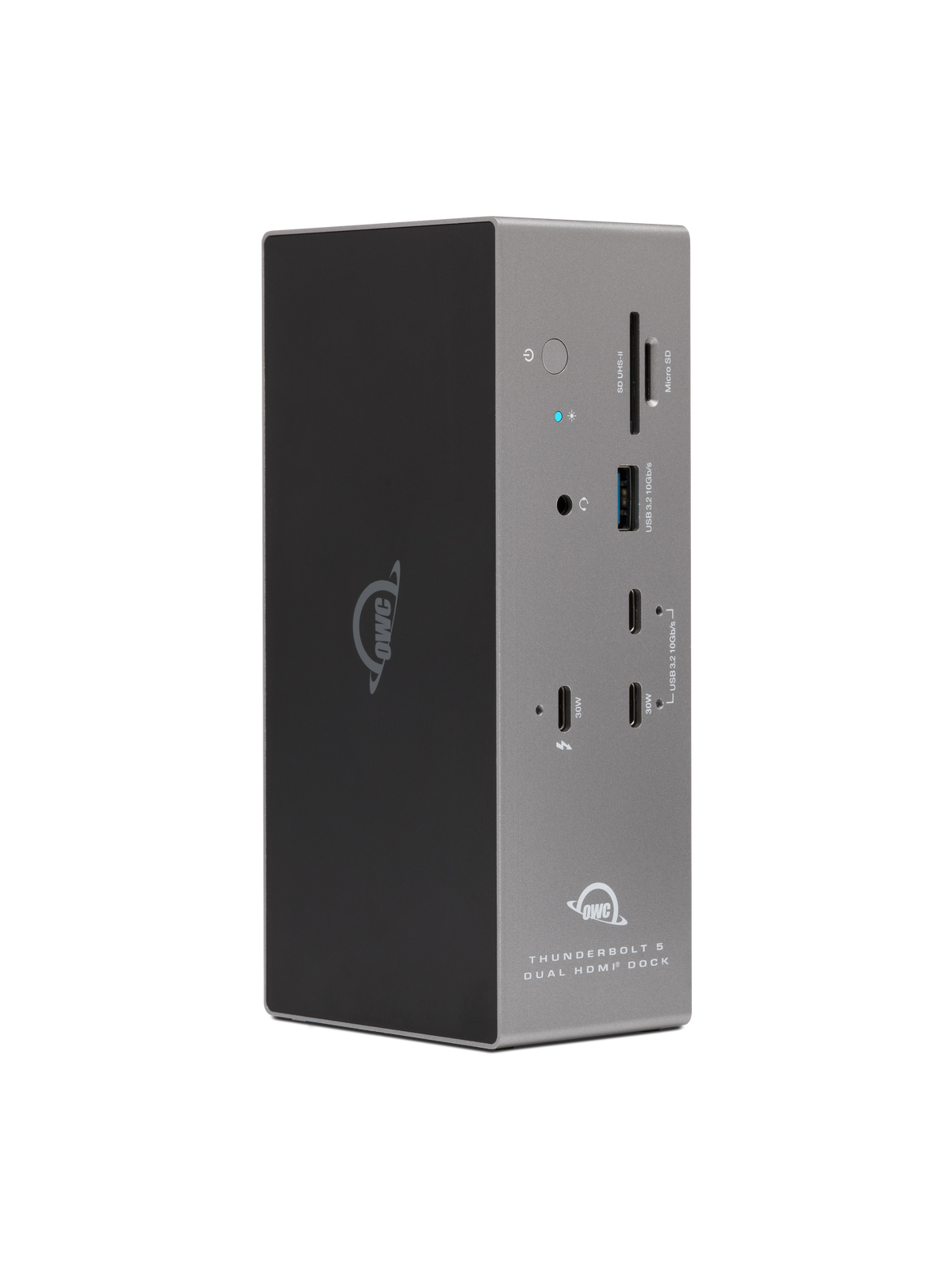

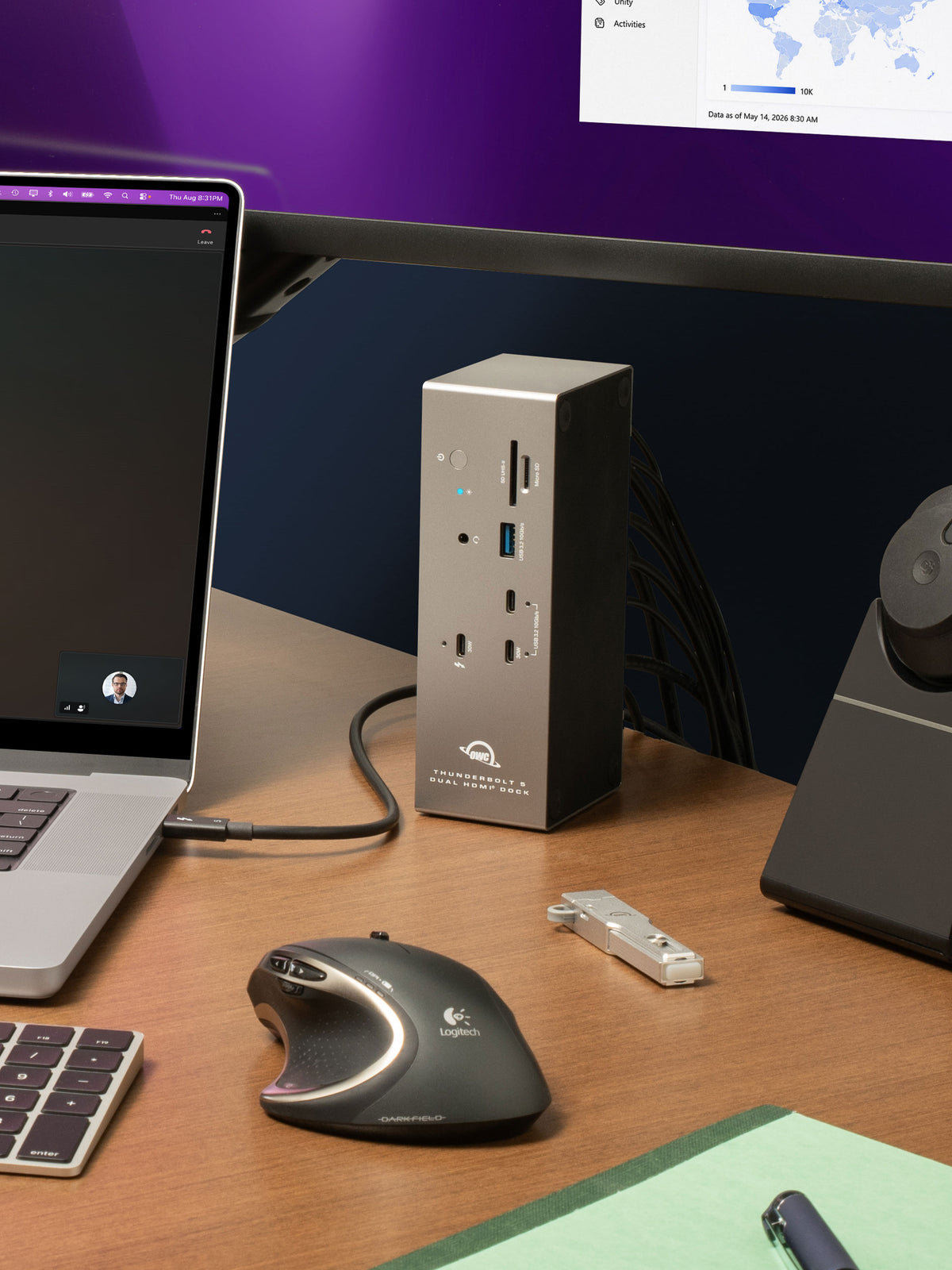

- Yes. The dock is designed to sit flat horizontally or stand vertically upright to minimise desk footprint.
Product data
| Brand | OWC |
|---|---|
| Product line | Thunderbolt 5 Docks |
| Colour | Space Grey |
| Part number | OWCTB5DHDOCKF |
| Barcode | 810179176846 |
| Dock type | Thunderbolt 5 desktop dock |
| Made in | Thailand |
| Warranty | 2 Year Limited Warranty |
| Sold by | MegaMac |
Other names for this product
OWC Thunderbolt 5 Dual HDMI Dock is also known as the OWC TB5 Dual HDMI Dock, OWC 140W Thunderbolt 5 Docking Station, or part number OWCTB5DHDOCK.
